PC-WIRE PRODUCTION LINES

PC-WIRE PRODUCTION LINES

These lines are dedicated to the treatment of low relaxation steel wire for prestressed concrete and structural reinforcement. They guarantee a technological process with very high performance and excellent quality, result of a great technical knowledge and long experience in this field.

Main Features:

  • Wire surface type: smooth, indented, galvanized;
  • Packaging: strapped coils with internal diameter > 1250 mm and/or bundles of tied bars;

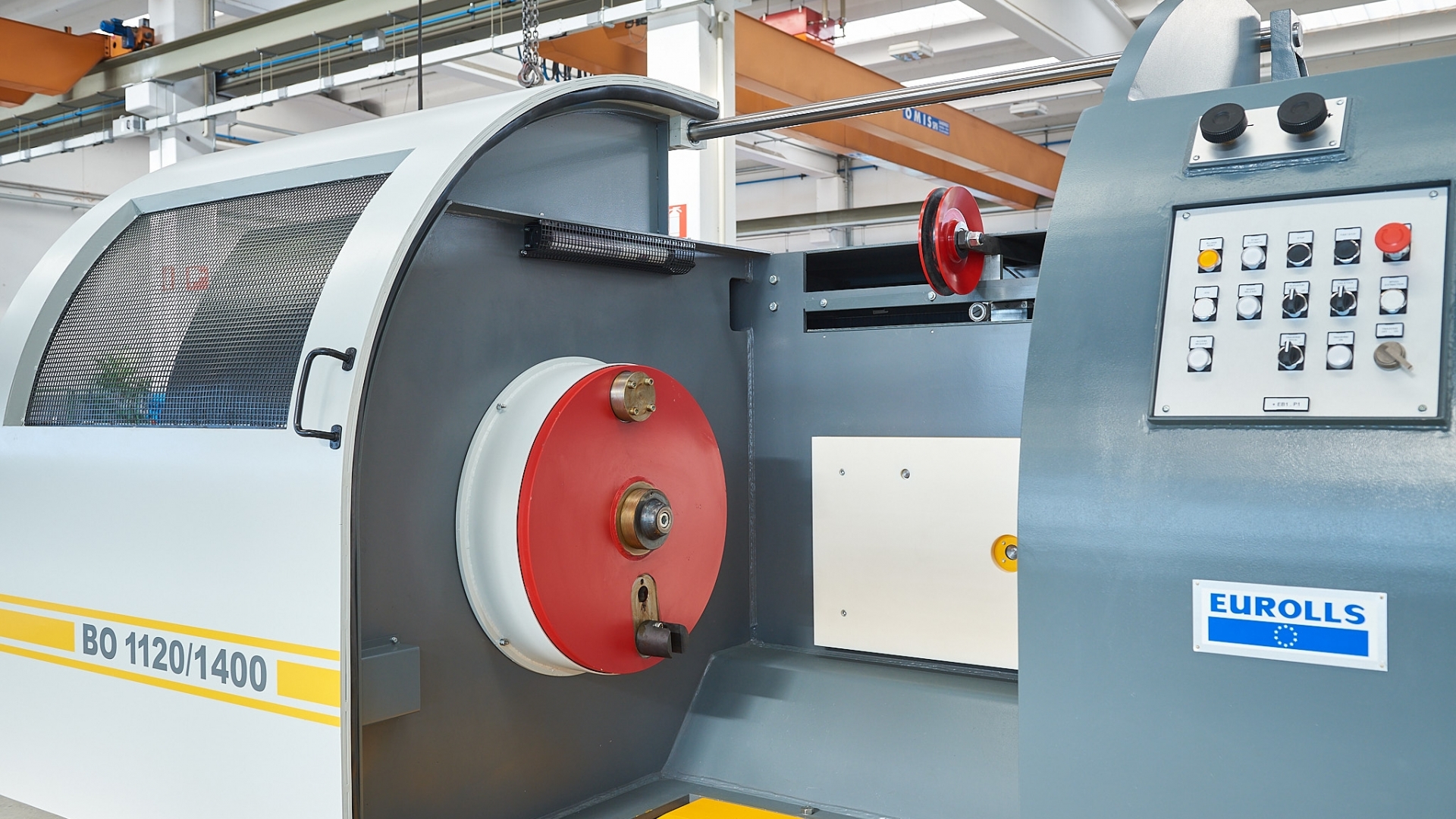

  • Wire pay-off: from motorized spool (DIN 1120 - 1400);
  • Tensioning system: by rotating die or by double capstan;

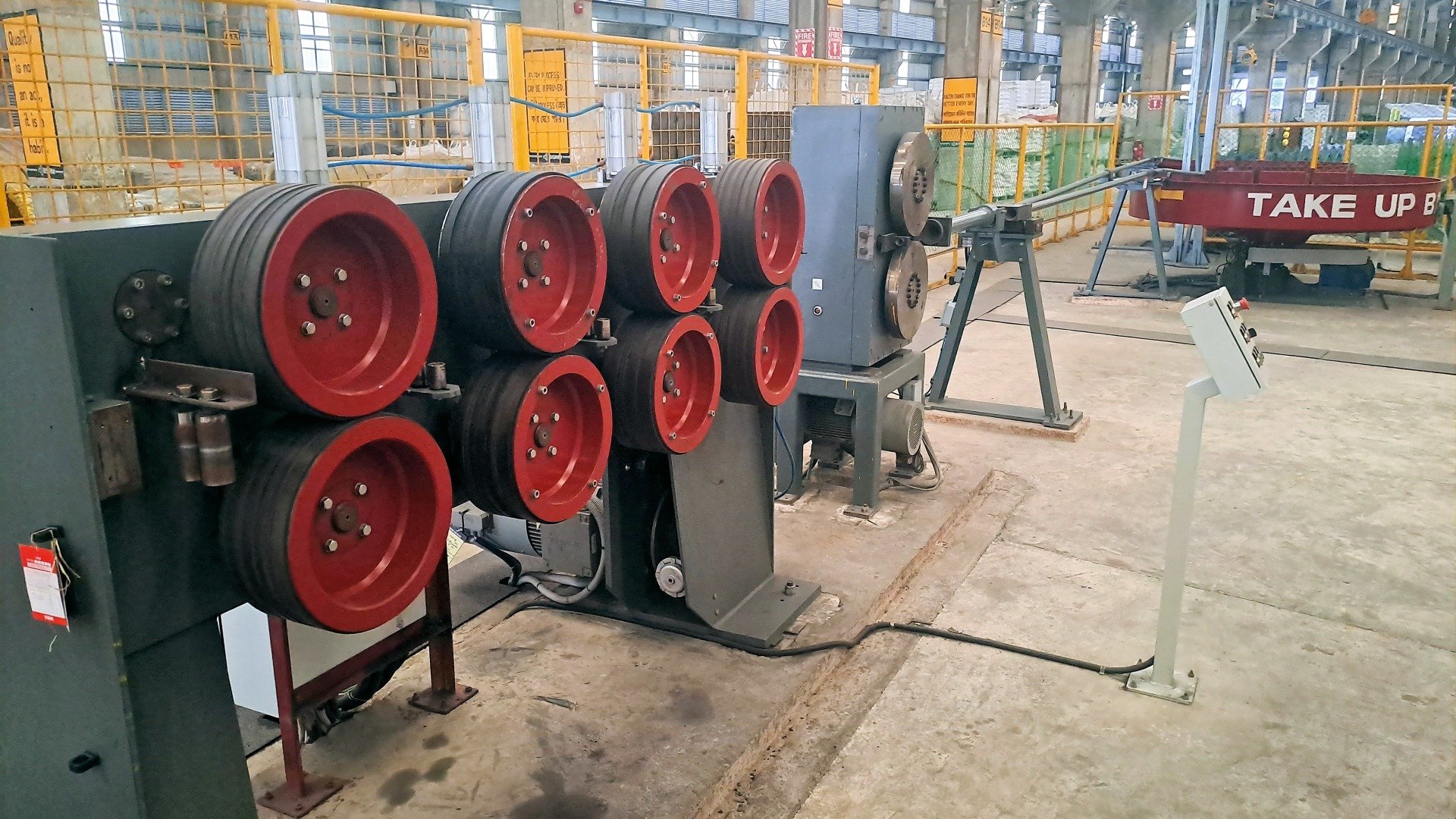

  • Straightening: quadruple straightener on 4 planes at 45°;
  • Indenting: by adjustable cassette;
  • Heating furnace type: Induction with power between 300 and 450 kW;
  • Wire cooling: by dip and spray in tunnel;
  • Pulling capstan: double with horizontal axis with V shape groove;
  • Capstan diameter: 3000 - 4000 mm;
  • Wire pusher: 4 pairs of gummed rolls hydraulically openable;
  • Cutting system: rotating shear;
  • Collecting system: 2 baskets with vertical axis Ø 3000 mm of maximum weight 3000 kg and/or collecting bars bench.

PC-Wire Series
WIRE Ø INPUT [mm] 3 ÷ 11
MAX. NOMINAL OUTPUT [kg/h] 6000
MAX. SPEED [m/min] 420
MAX. TENSILE STRENGHT [N/mm²] 2160
PC WIRE Watch the video
