MULTIPASS DRAWING LINES

MULTIPASS DRAWING LINES

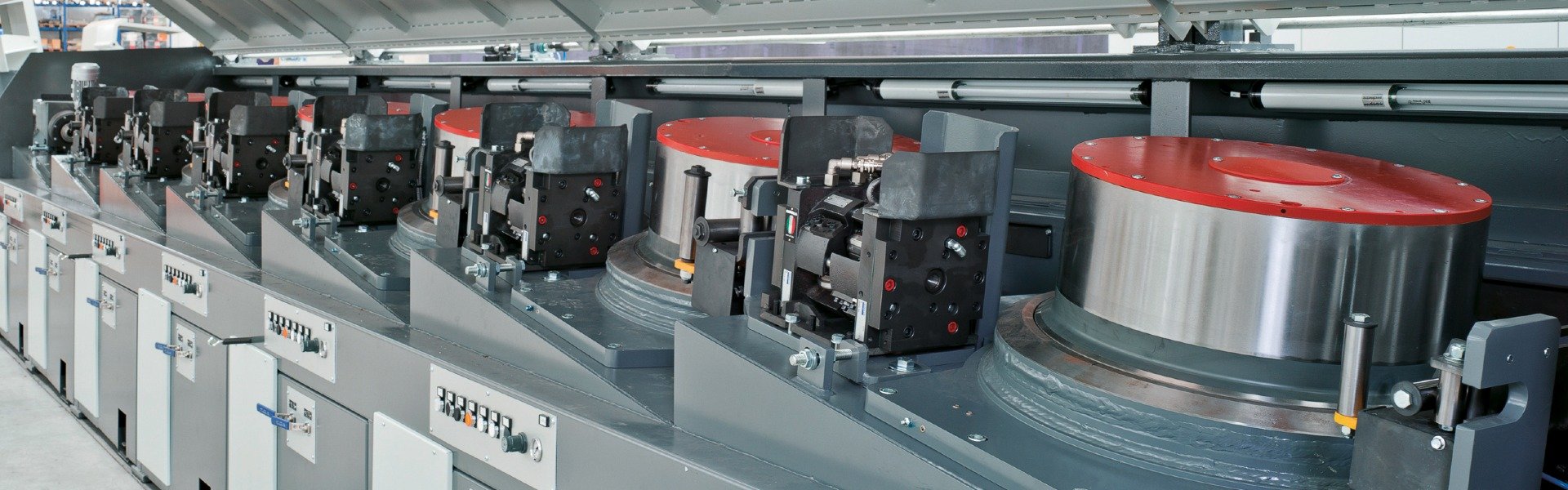

Eurolls Team Meccanica proposes dry-drawing machines particularly suitable for the production of wires made of low-carbon steel and stainless steel. Together with Eurolls Team High Carbon, we designed machines suitable for drawing lines that produce also high-carbon and special alloys. Our machines can be equipped with either dies or our cold rolling microcassettes. To complete the process, we can supply a full range of pay-offs, spoolers, and dead-blocks.

Main Features:

  • Custom design according to the most demanding requirements;
  • Native integration for microcassettes;
  • Sturdy, vibration-free, modular steel frame;
  • Capstans with patented solutions for high eficiency water cooling;
  • Supply of various optional equipments, such as overhead payoff, stripper capstan, laser gauge for control of finished diameters etc.;
  • Ecological casing with possibility of dust extraction;
  • Production control through video keyboard and centralized control through remote computer;
  • Dies with washing tank;
  • Rotating cassettes for twisted wire.

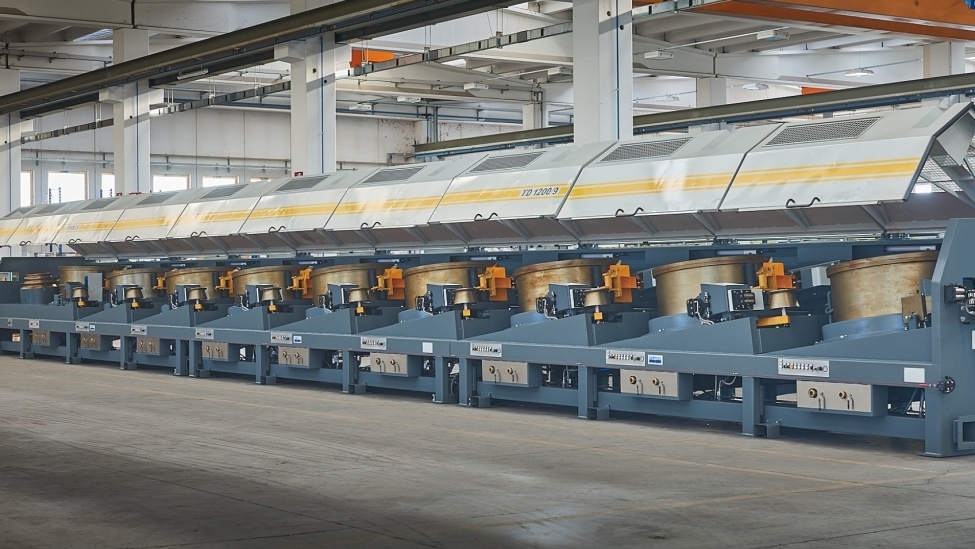

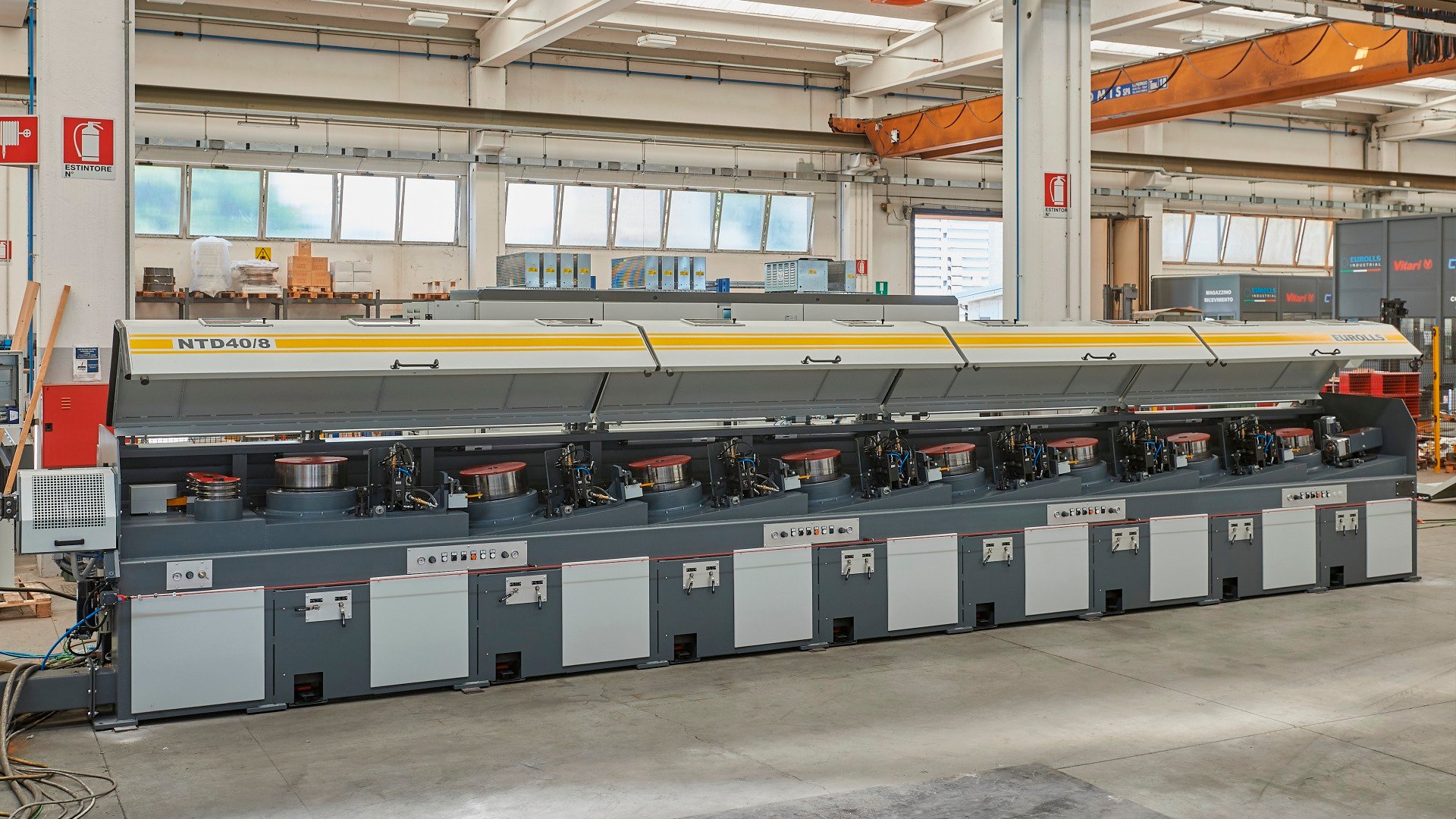

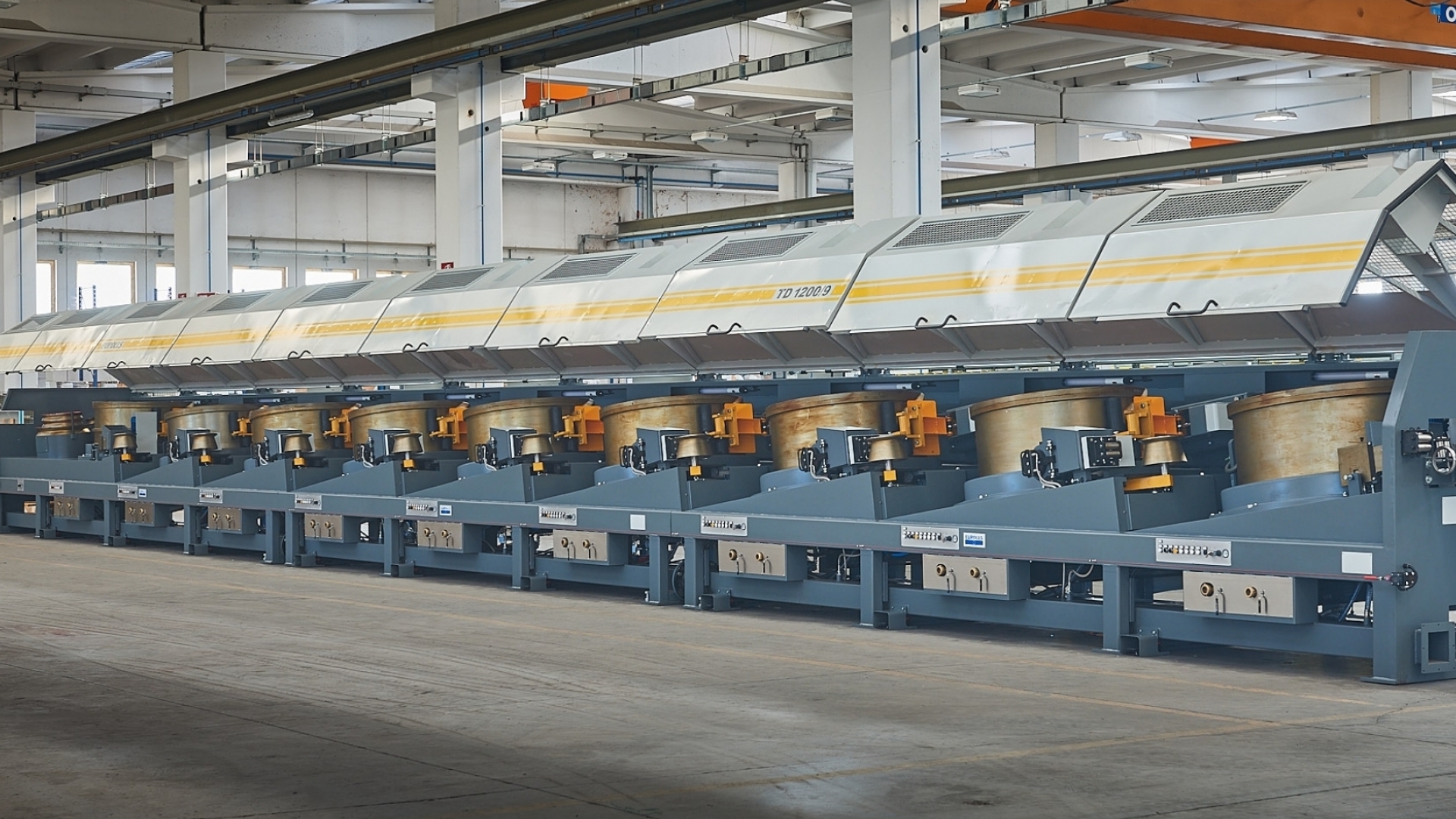

NTD Series   NTD 200 NTD 300 NTD 400 NTD 560 NTD 630 NTD 710 NTD 760 NTD 900 NTD 1200 NTD 1500
CAPSTAN DIAMETER [mm] 200 300 400 560 630 710 760 900 1200 1500
MAX. NUMBER OF DRAFTS [-] 16 16 16 14 12 10 10 10 9 6
MAX. POWER OF MOTORS [kW] 5 11 22 45 75 90 90 130 160 250
WIRE Ø INPUT – LC [mm] 1.0 ÷ 2.5 1.0 ÷ 3.5 2.0 ÷ 4.5 5.5 ÷ 7.0 5.5 ÷ 8.0 5.5 ÷ 12.0 5.5 ÷ 12.0 5.5 ÷ 16.0 8.0 ÷ 20.0 8.0 ÷ 26.0
WIRE Ø INPUT – HC [mm] 1.0 ÷ 2.0 1.0 ÷ 3.0 2.0 ÷ 4.0 5.5 ÷ 6.5 5.5 ÷ 7.0 5.5 ÷ 9.0 5.5 ÷ 9.0 5.5 ÷ 13.0 6.5 ÷ 16.0 8.0 ÷ 21.0
MIN. WIRE Ø OUTPUT [mm] 0.10 0.25 0.50 1.00 2.00 2.50 3.00 3.00 3.50 4.50

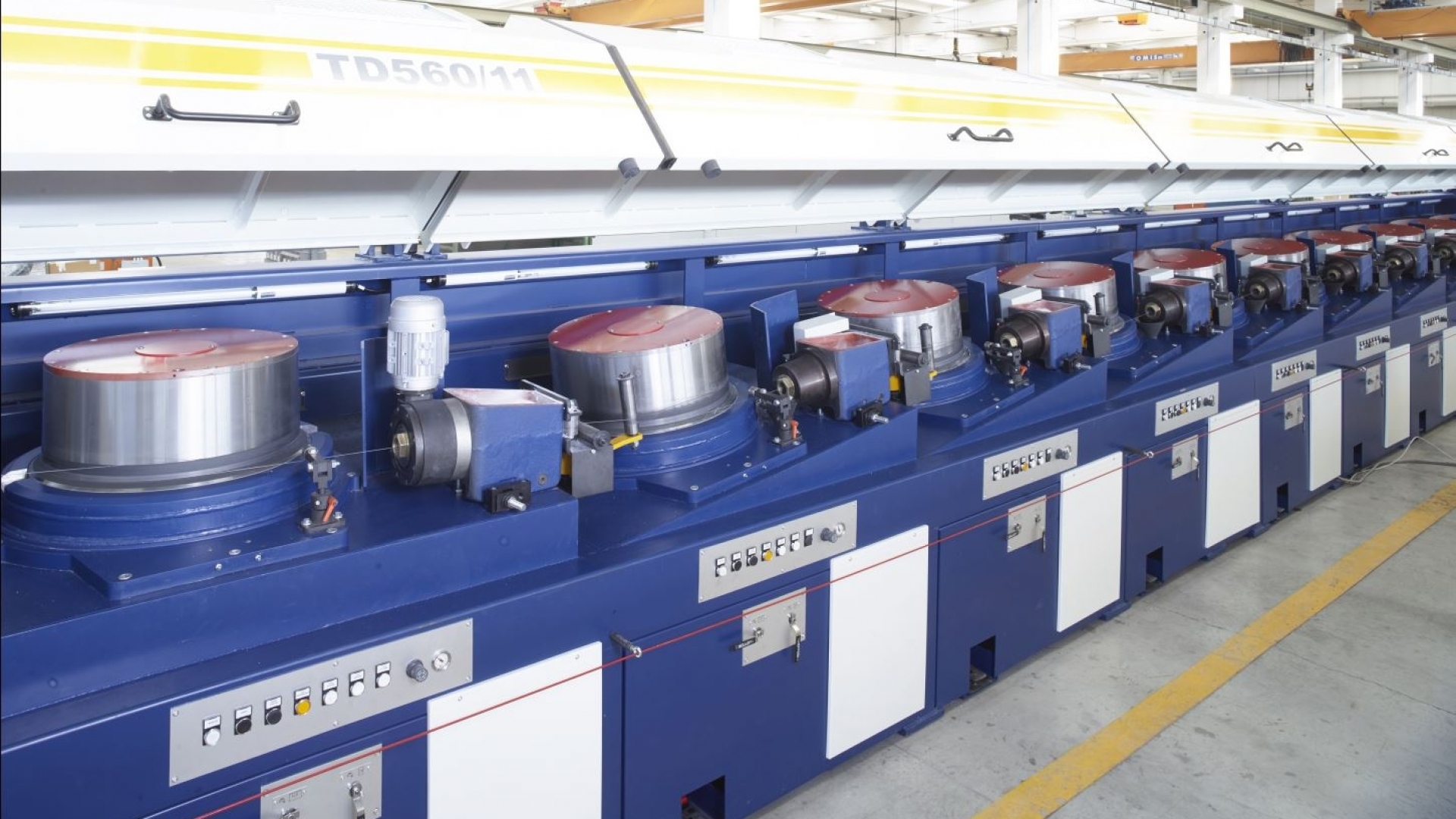

NTD 560/11 - MO 300R Watch the video
