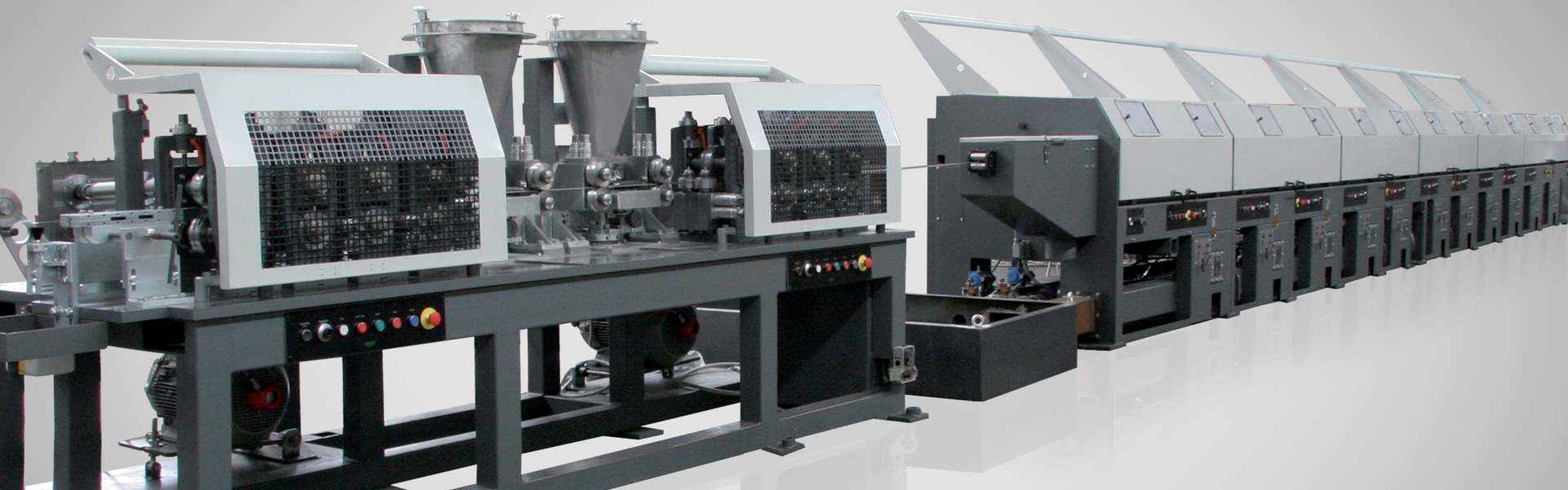

FLUX-CORED WIRE PRODUCTION LINES
This line is used for shaping, filling, sealing and drawing the tubes present in the seamed flux-cored welding wire during the production process. The line comprises several process stages, starting from the steel strip up to the collection of the flux-cored wire in coils of appropriate weight.
Main Features:
Main Features:
- Strip uncoiling;
- Cleaning and degreasing by solvent;
- 4-stage strip cold shaping station with motorized rolls;
- Tube filling station with a mixture of flux powders;

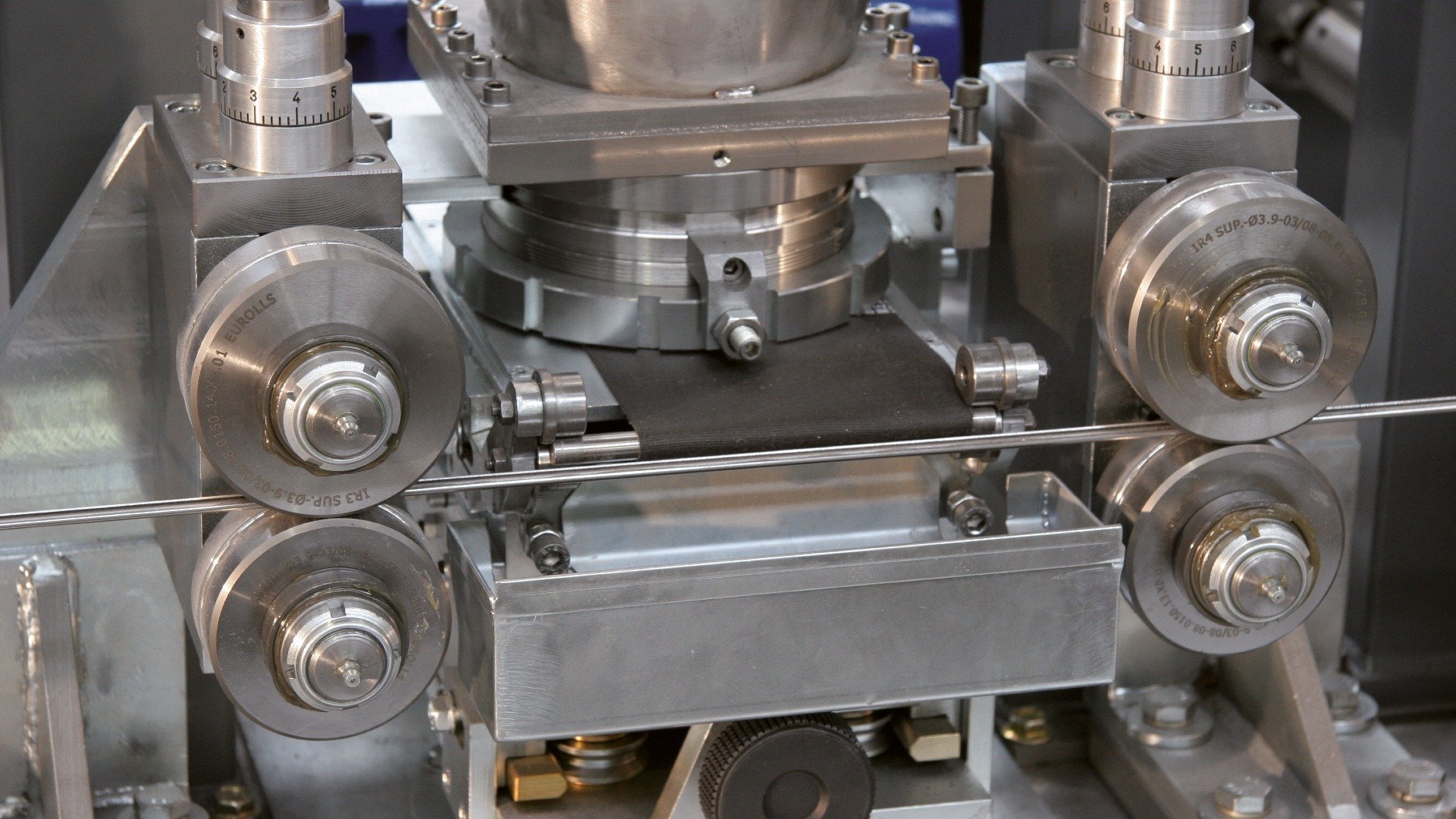

- Tube shaping and closing station (flush or overlapped edges);
- Belt extractor;

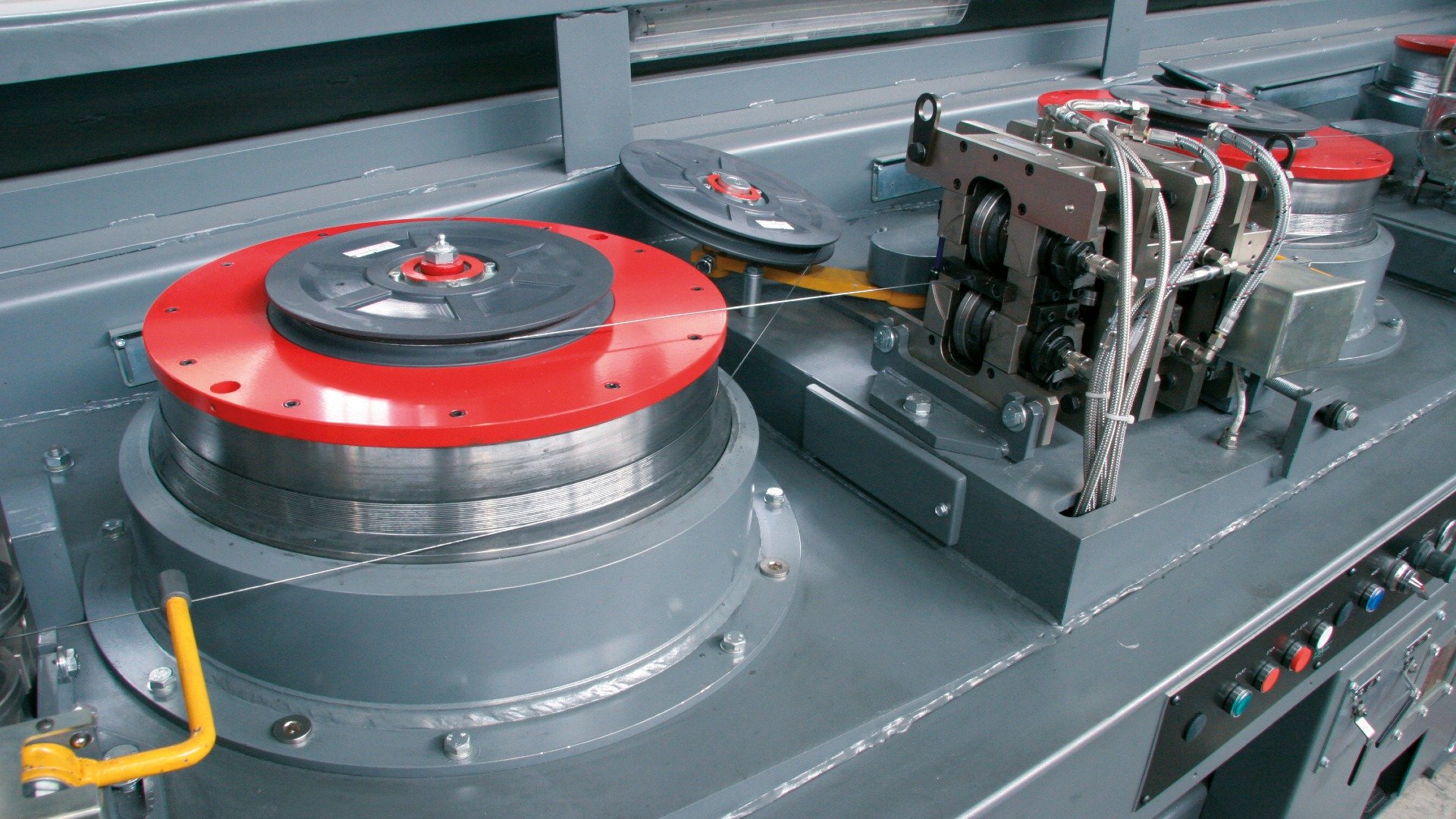

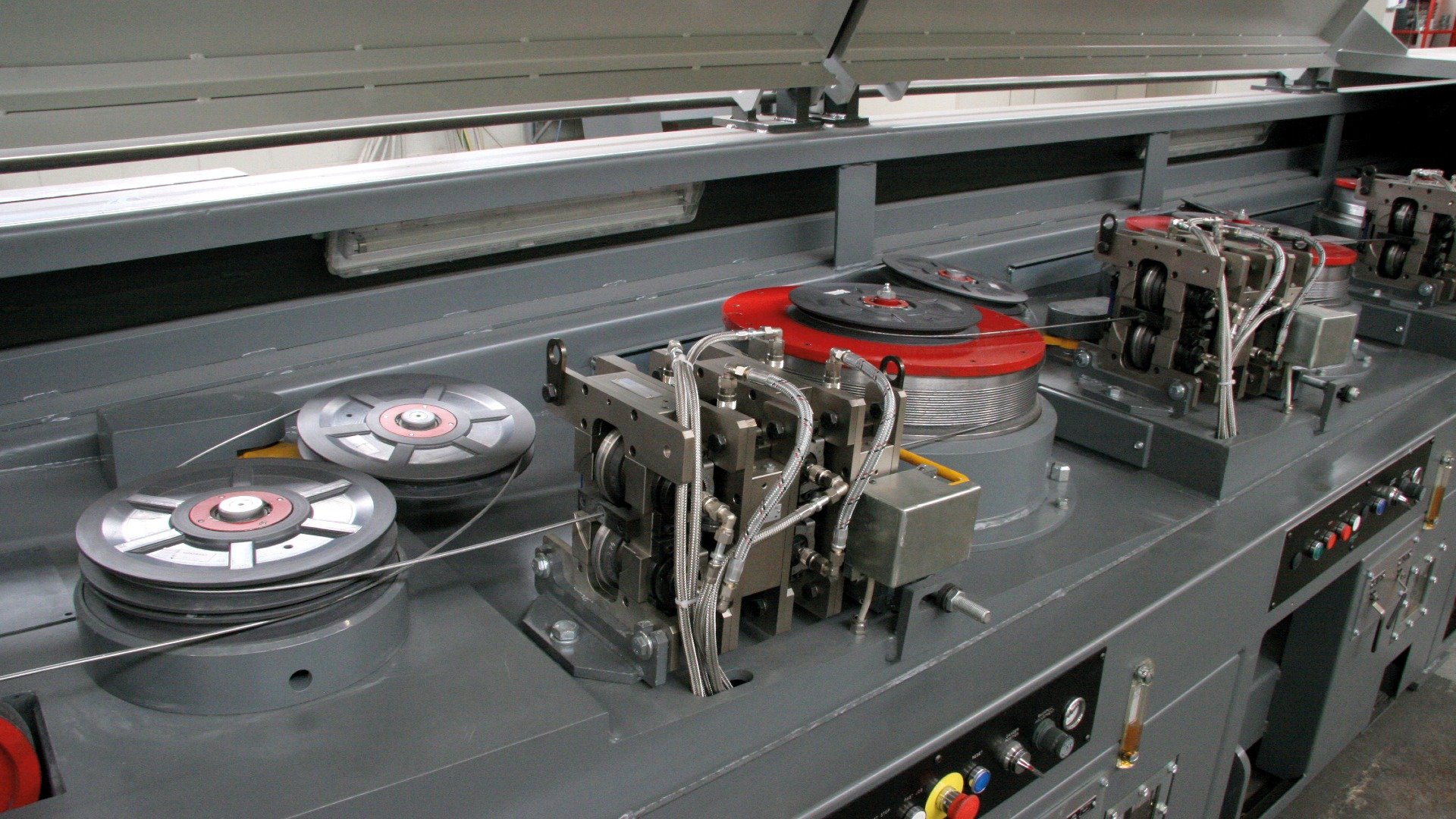

- Multipass drawing with rolls cassettes;
- Wire spooling.
| FCW Series | ||
|---|---|---|
| STRIP WIDTH | [mm] | 9.00 ÷ 15.00 |
| STRIP THICKNESS | [mm] | 0.60 ÷ 1.20 |
| WIRE Ø OUTPUT | [mm] | 0.98 ÷ 3.40 |
| FILLING SPEED | [m/min] | 100 |
| MAX. FINAL SPEED | [m/min] | 1200 |
