WIRE POINTING MACHINES

WIRE POINTING MACHINES

Sturdy machine, designed to sharpen the point of metal and non-metal wire. The wire pointing operation is carried out by inserting the wire end into the groove fitting the wire dimensions and pushing it inside the machine. The wire pointing machine will roll the wire and then expel it.
The machine consists of the following main units:

  • No.1 frame;

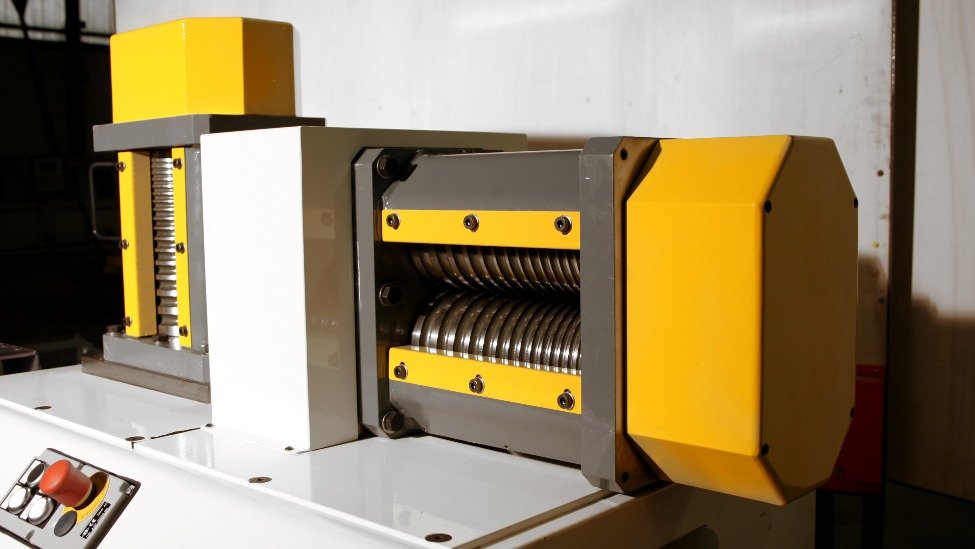

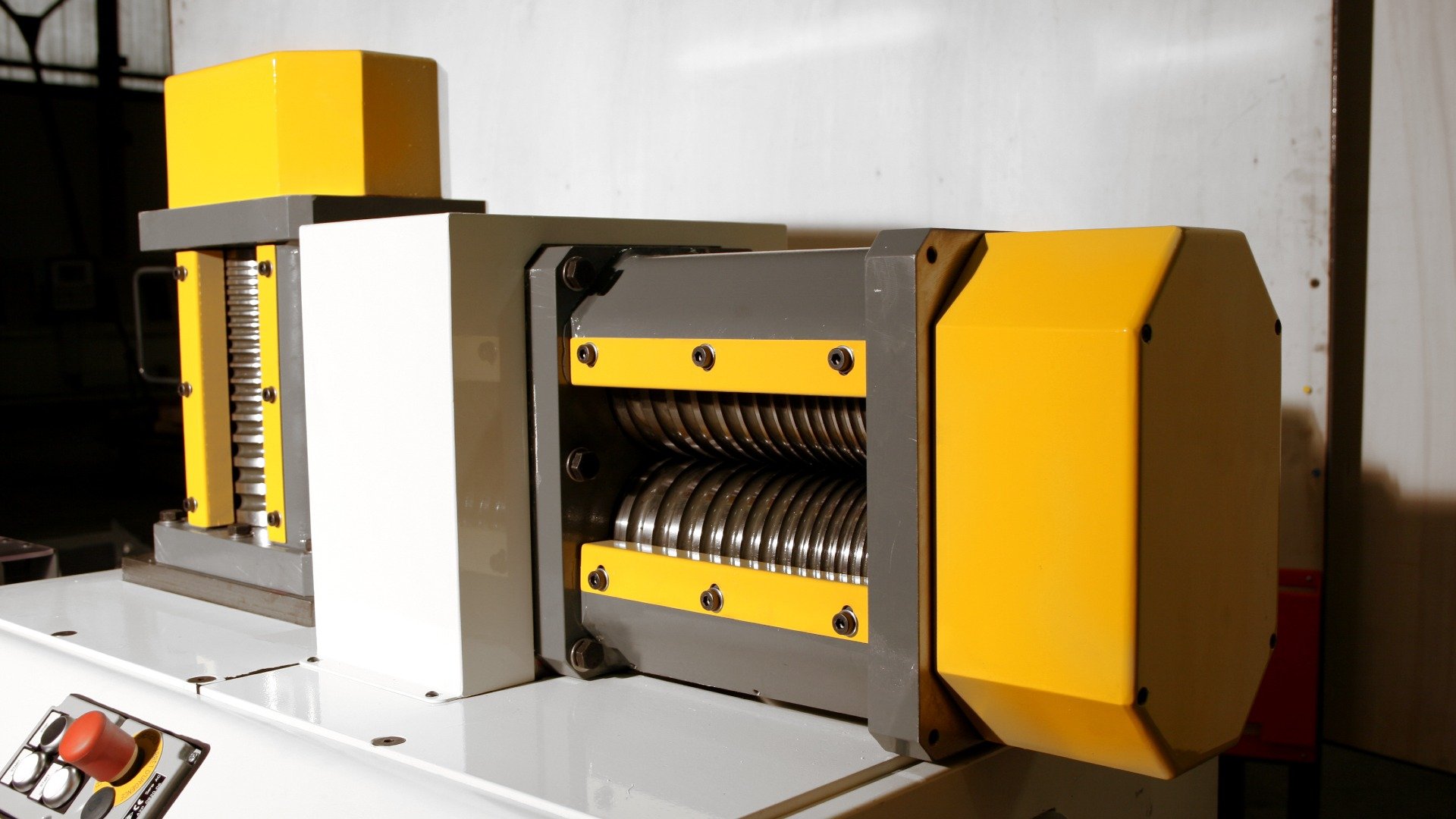

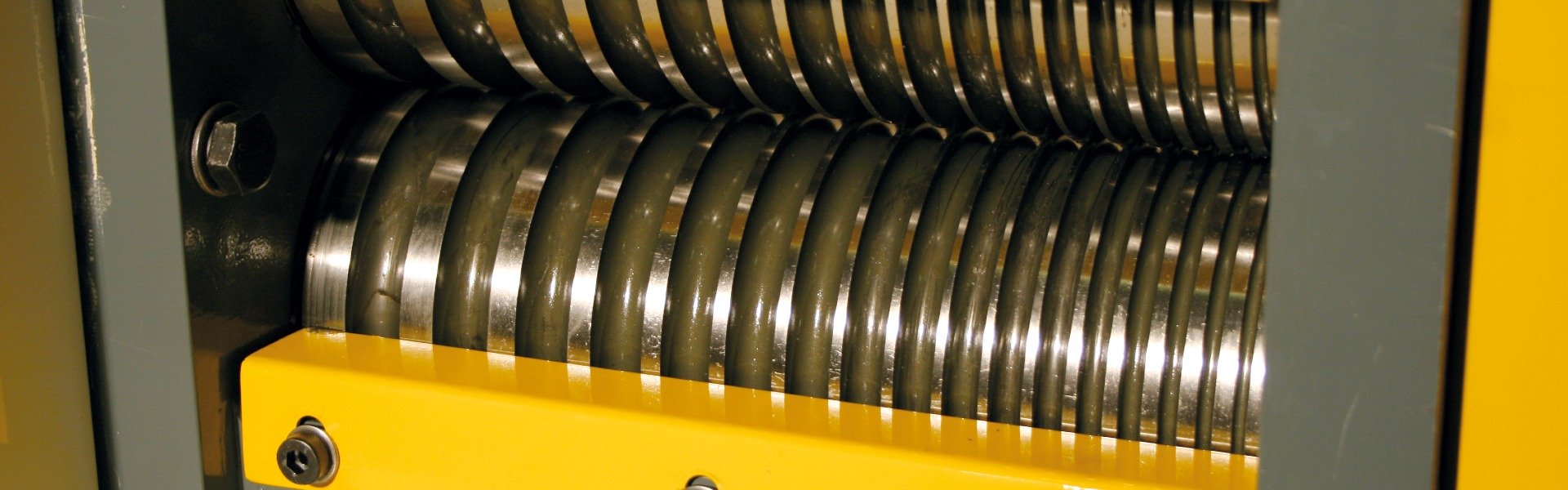

  • No.2 pairs of non-deformable alloy steel quench-hardened and ground pointing rolls;
  • No.1 A.C. gearmotor;

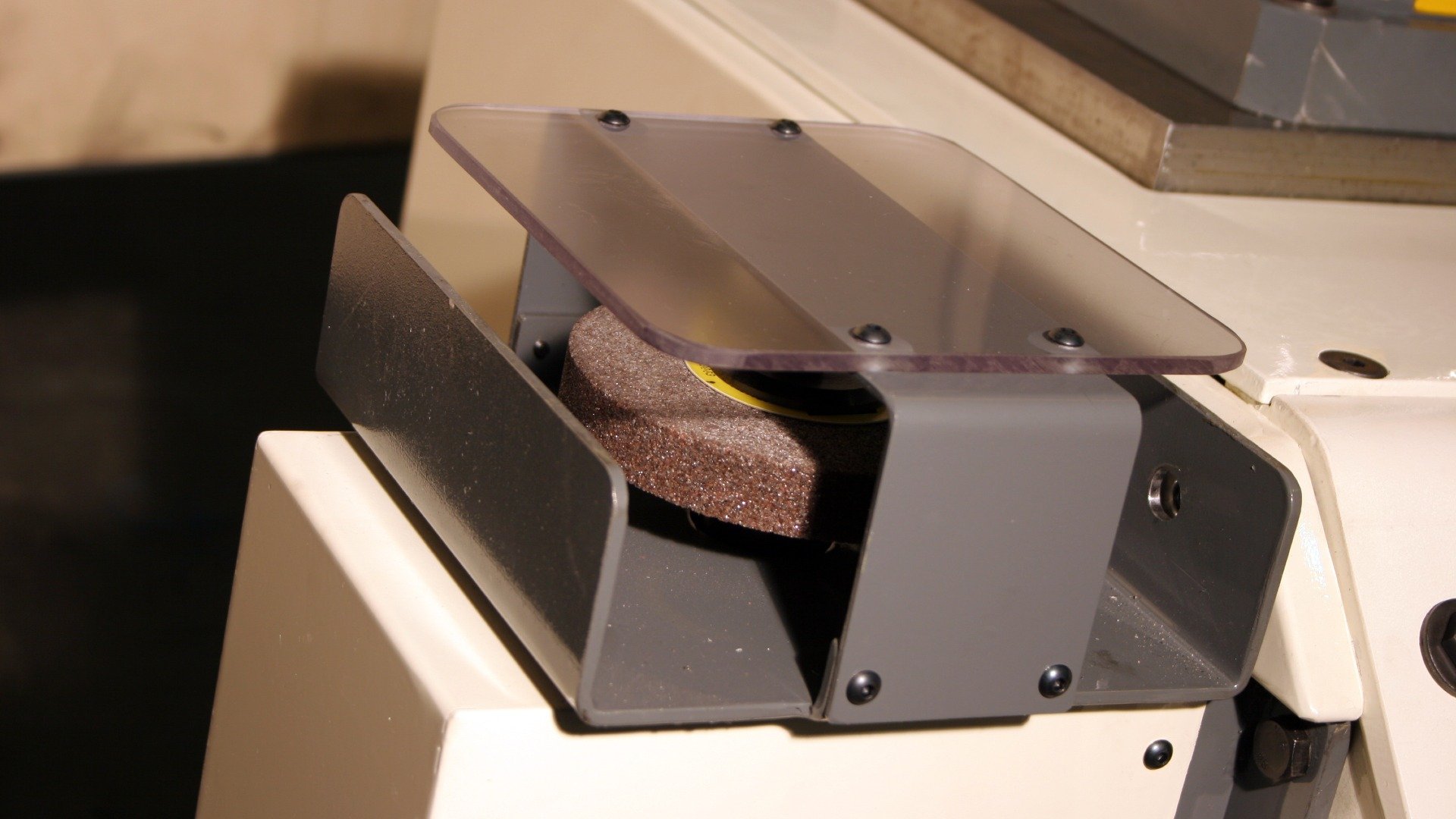

  • No.1 grinder (optional);
  • No.1 shear (optional).

AMV Series   AMV1 AMV2
MINIMUM WIRE DIAMETERS
ACCEPTED BY THE MACHINE
[mm] 0,8 3,0
MAX WIRE DIAMETERS
ACCEPTED BY THE MACHINE
[mm] 8,0 16,0
