LATTICE GIRDER LINES

LATTICE GIRDER LINES

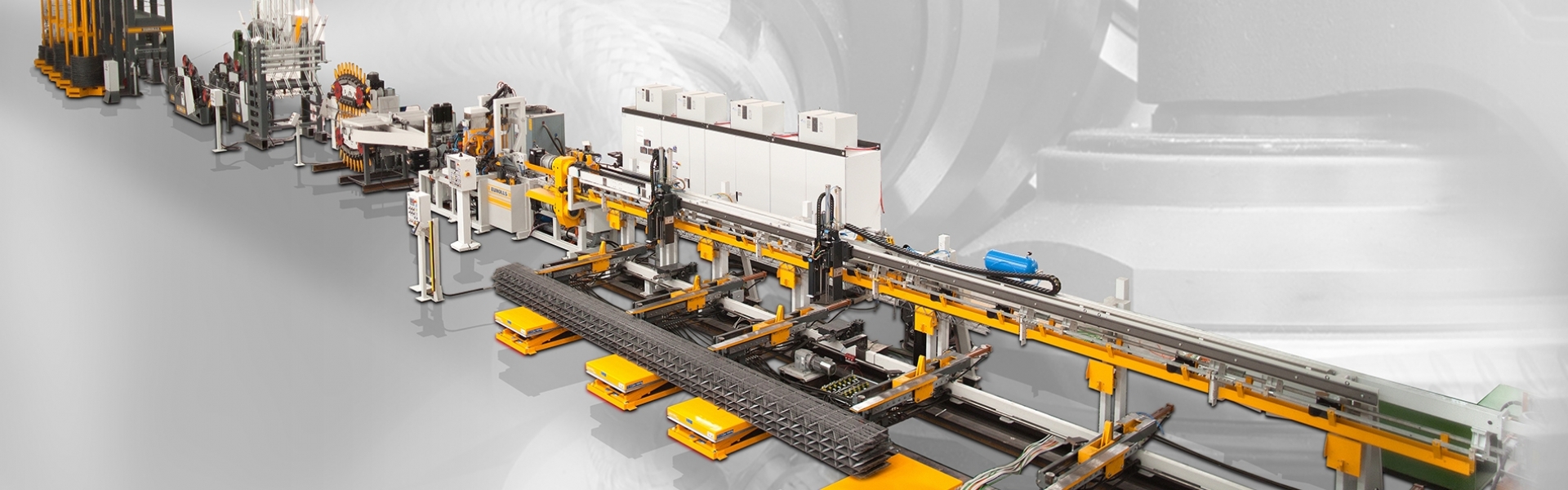

Ease of operation and set up, together with high productivity, flexibility and efficiency, are the basis of the design of the Eurolls Teurema lattice girder lines.
All line operations and girder production parameters are directly controlled by the operator from the main control pulpit. The lattice-girder production process is fully automatic, reducing the duties of the operator to the general control of the process, the loading of entry material and the evacuation of the finished and stacked product.

Main Features:

  • Production speed up to 40 m/min;
  • Pneumatic welding system;
  • Easy and fast set up, especially for product change;
  • Easy maintenance and reduced operation costs;

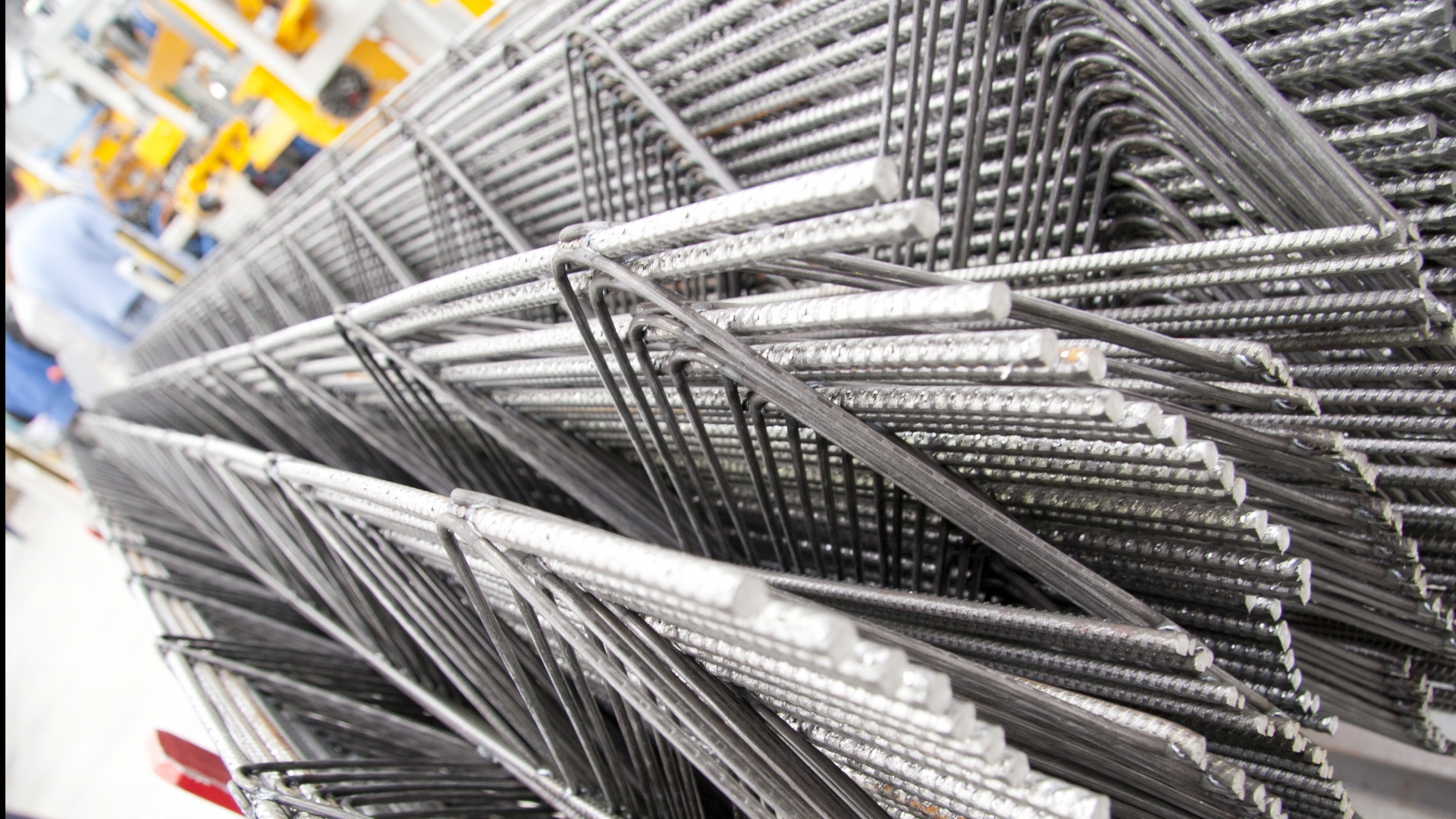

  • Possibility of fully automatic stack tying and overturning.

TE Series   TE 32 TE 40
UPPER WIRE Ø [mm] 5.0 ÷ 12.0 5.0 ÷ 12.0
LOWER WIRE Ø [mm] 3.5 ÷ 12.0 3.5 ÷ 12.0

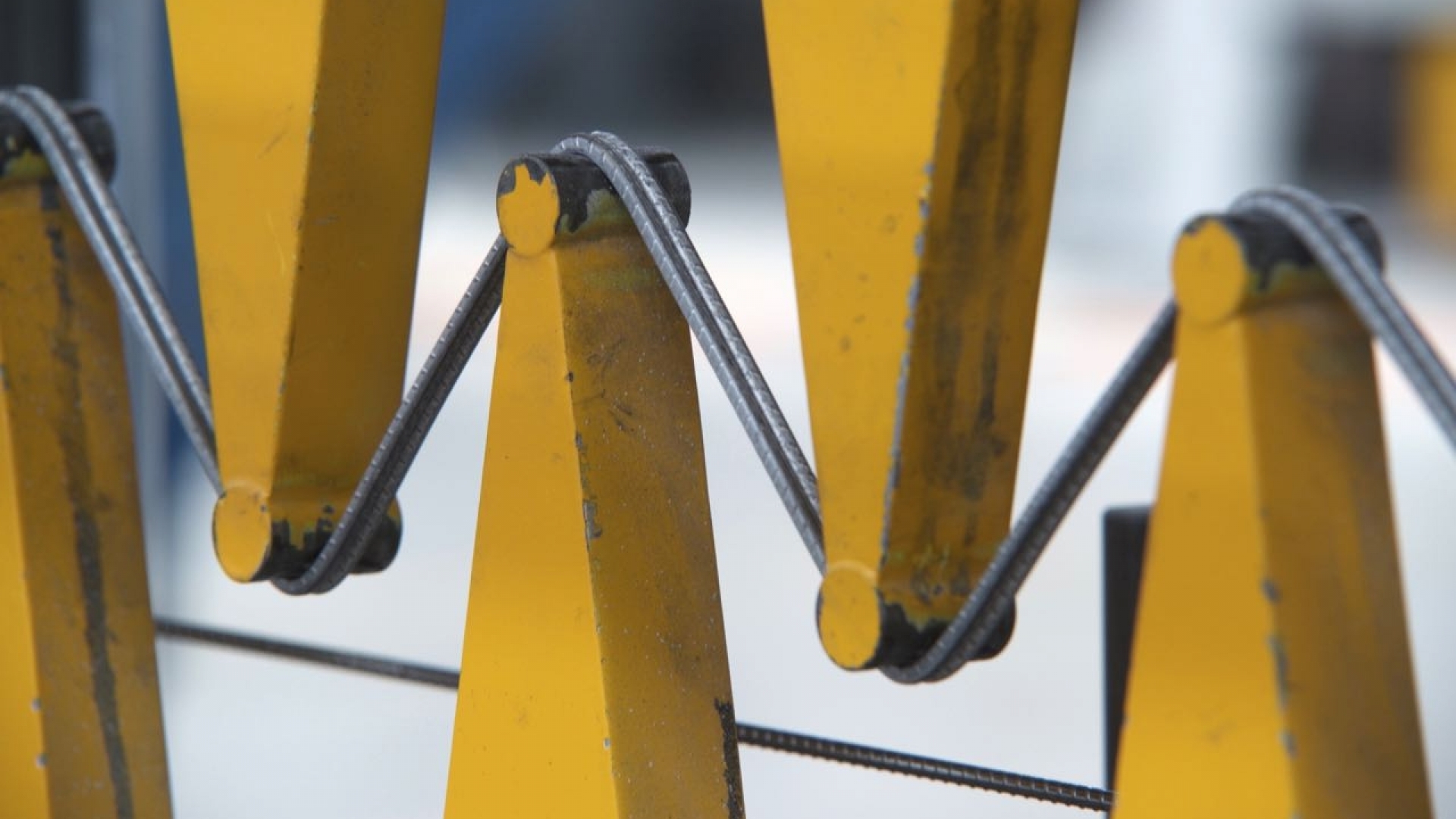

STIRRUP WIRE Ø [mm] 3.0 ÷ 7.0 3.0 ÷ 7.0
GIRDER HEIGHT [mm] 70 ÷ 300 70 ÷ 300
GIRDER STIRRUP PITCH [mm] 200 (fixed) 200 (fixed)

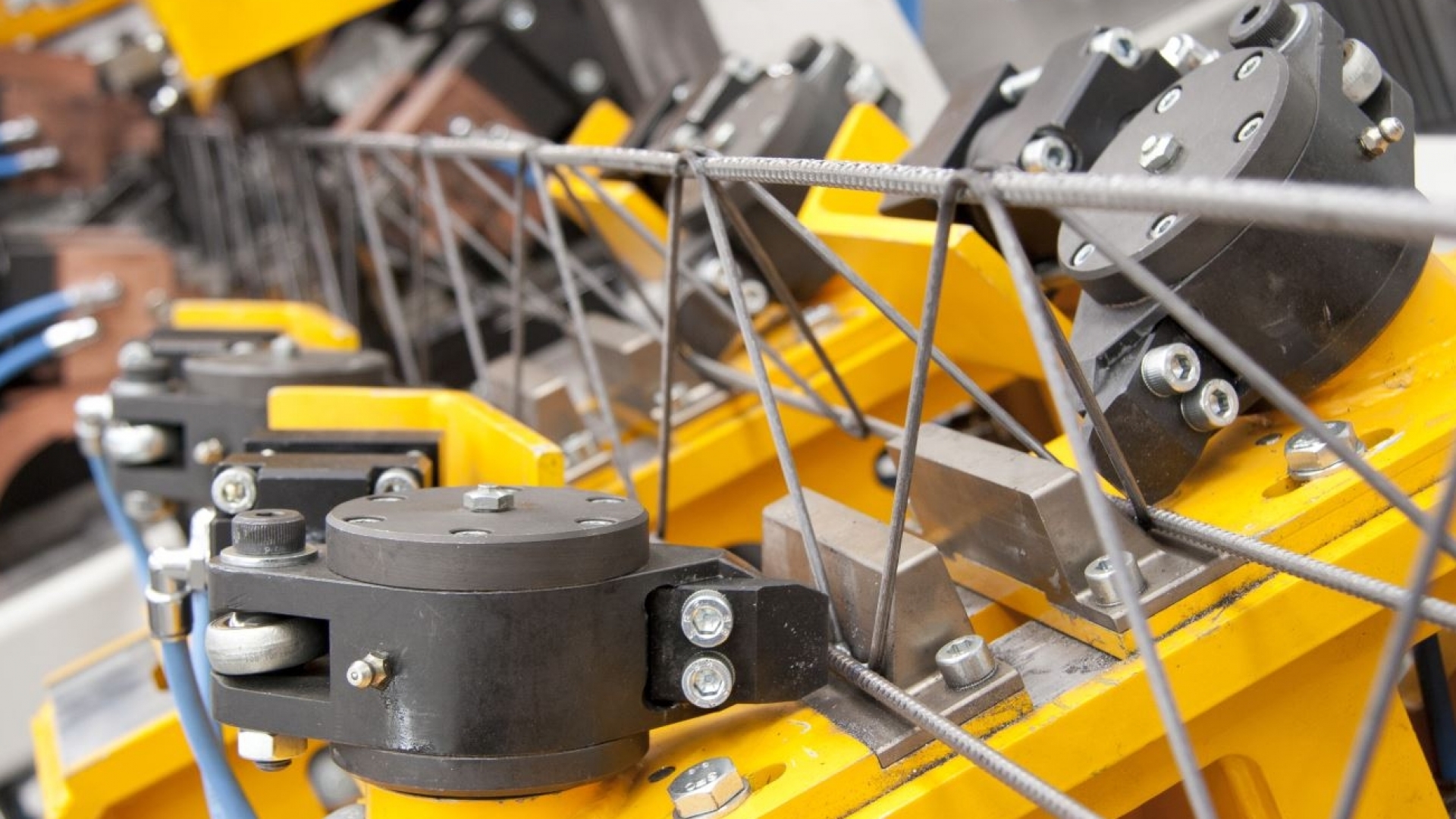

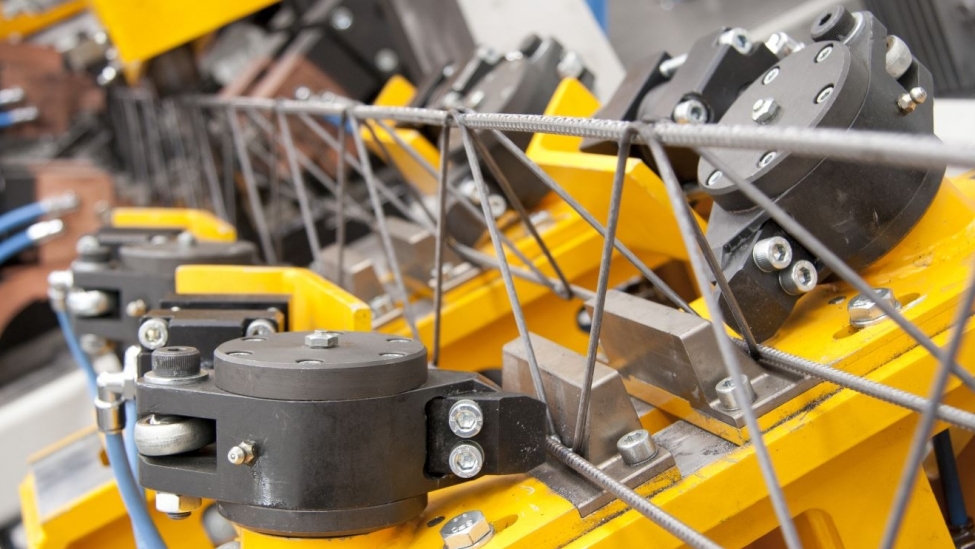

GIRDER ADVANCEMENT [mm] 400 (fixed) 400 (fixed)
ADVANCEMENT SYSTEM [-] trolley rolls
MAX. COIL WEIGHT [kg] 3000 3000
MAX. SPEED [m/min] 32 40
QRC + TE Watch the video
