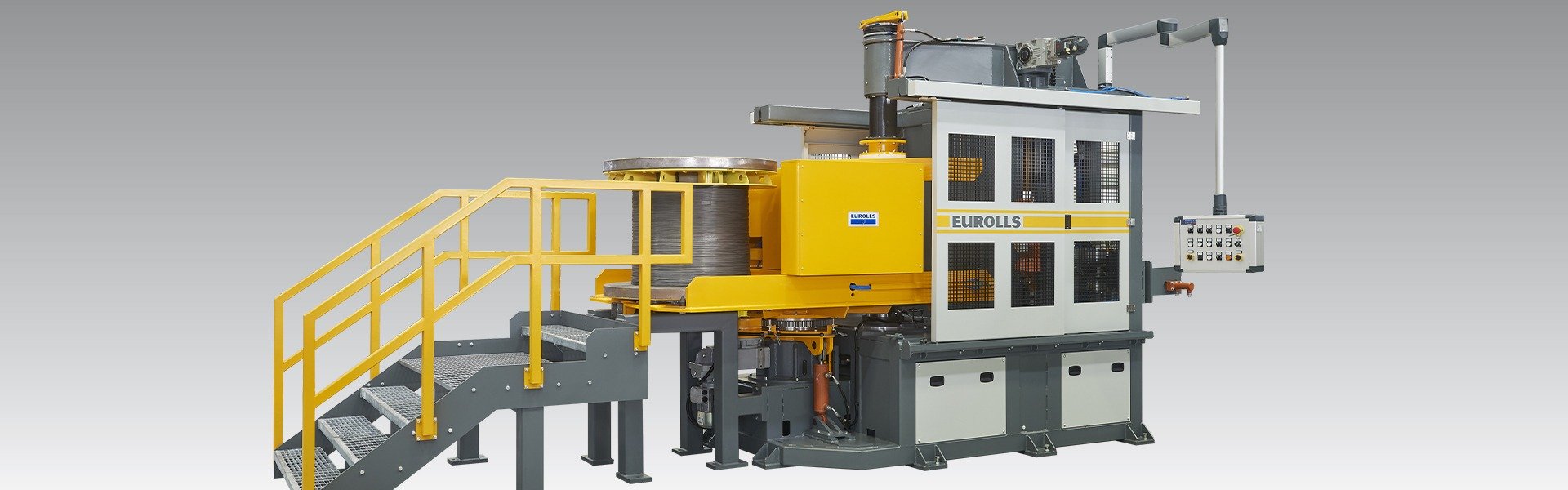

SPOOLERS

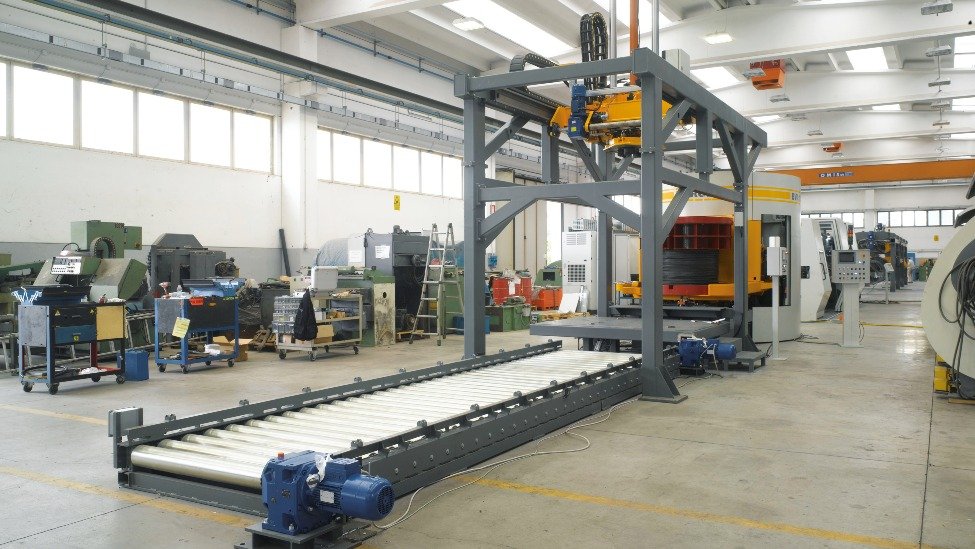

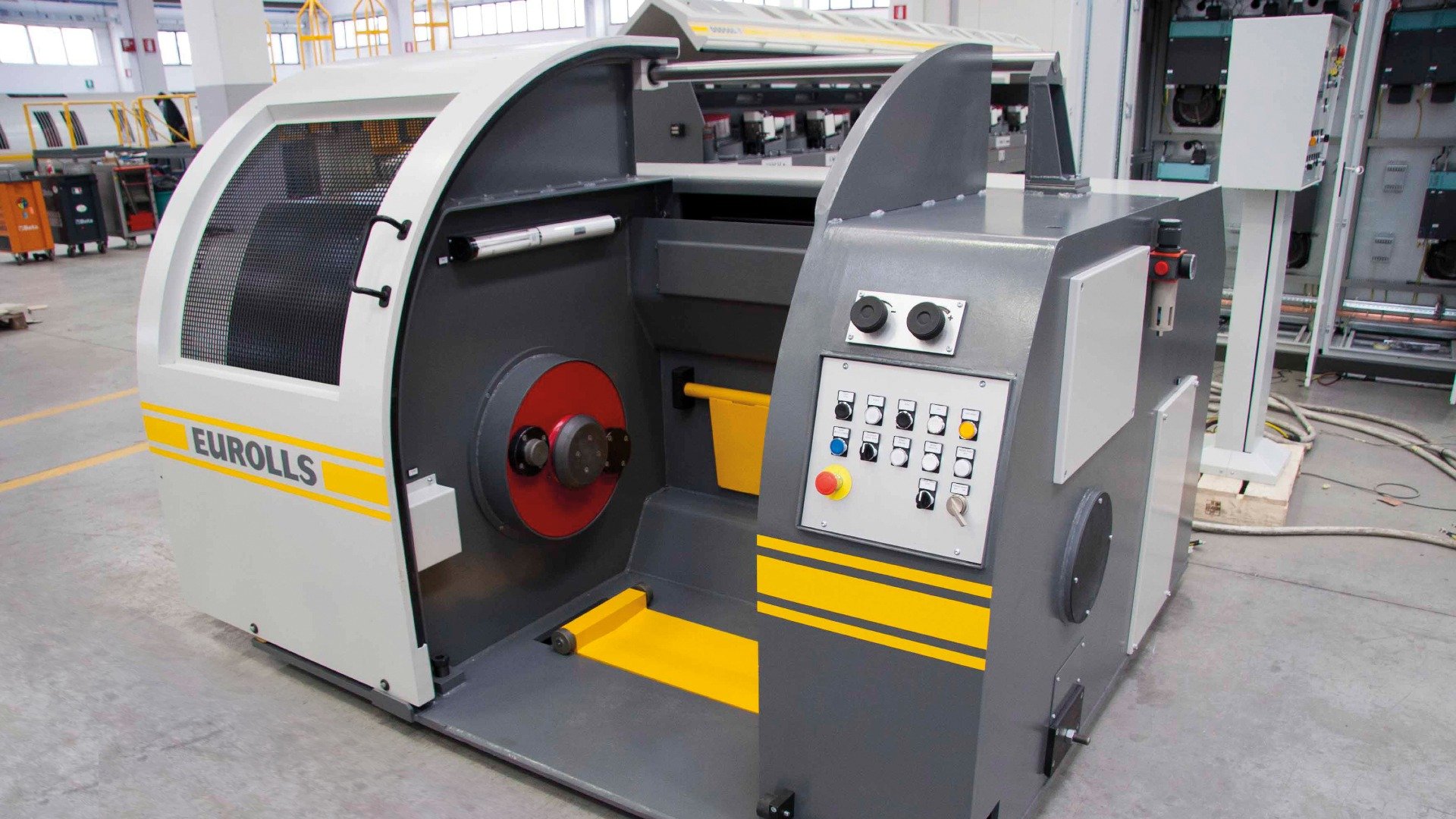

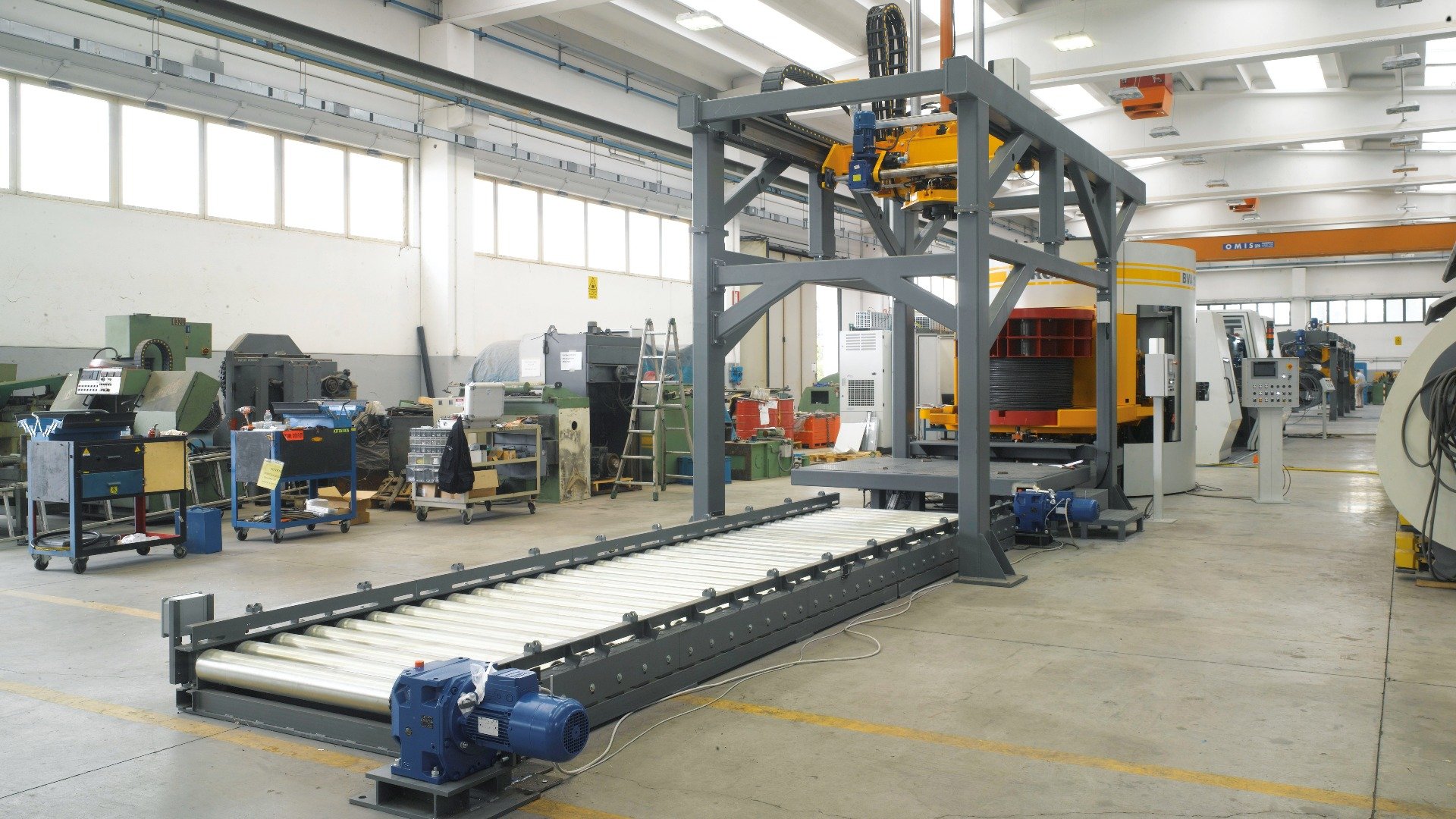

Eurolls Teurema has several spoolers in its range, such as single/double, horizontal/vertical, semi/fully automatic, designed to work with all kinds of spools: fixed/collapsible, manual/automatic decomposing or custom design. The line can be complemented also with automatic spool handling, meaning automatic loading/unloading, collapsible spool opening/closing, strapping, weighing, labelling and conveying.
Main Features:
- Maximum winding speed up to 20 m/s;
- Wire spooling capacity up to 8 tons;
- Wire diameters up to 25 mm;
- Layer-layer winding;
- Fully automatic spool changing and wire threading available;
- Full integration with complete automatic spool handling systems;
- Function to collect automatically specimens, set up from main pulpit;
- Simplified kinematics design, without gearboxes and reduced maintenance.

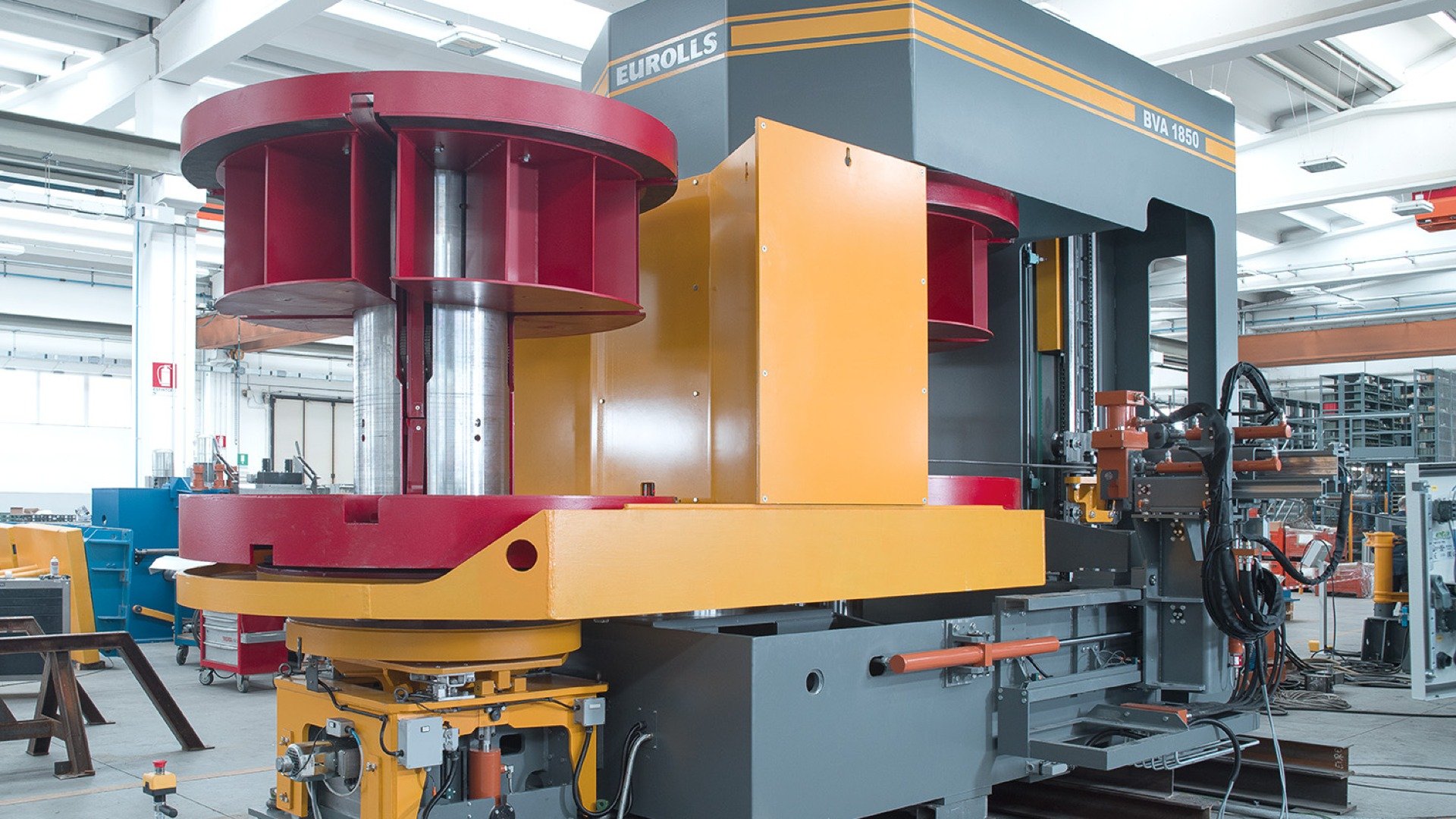

| B Series | BO 1000 | BO 1120 | BO 1250 | BVS 1000 | BVS 1120 | BVS 1250 | BVD 1000 | BVD 1120 | BVD 1250 | BVA 1350 | BVA 1500 | BVA 1850 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WIRE Ø INPUT | [mm] | 2 ÷ 8 | 3 ÷ 10 | 3 ÷ 12 | 2 ÷ 8 | 3 ÷ 10 | 3 ÷ 12 | 2 ÷ 8 | 3 ÷ 10 | 3 ÷ 12 | 3 ÷ 16 | 3 ÷ 16 | 12 ÷ 25 |
| WIRE NET WEIGHT | [kg] | 2000 | 2500 | 3000 | 2000 | 2500 | 3000 | 2000 | 2500 | 3000 | 3000 | 5000 | 8000 |
| SPOOL HANDLING CAPACITY | [-] | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| SPOOL POSITION | [h/v] | h | h | h | v | v | v | v | v | v | v | v | v |
| SPOOL CHANGE | [m/a] | m | m | m | m | m | s | s | s | a | a | a | a |
| WIRE INSERTION | [m/a] | m | m | m | m | m | m | m | m | m | a | a | a |
| MAX. SPEED | [m/s] | 20 | 20 | 20 | 14 | 14 | 20 | 20 | 18 | 18 | 18 | 18 | 10 |
GUIDE: h = horizontal, v = vertical, m = manual, s = semi-automatic, a = automatic
