SH WELDING MACHINES

SH WELDING MACHINES

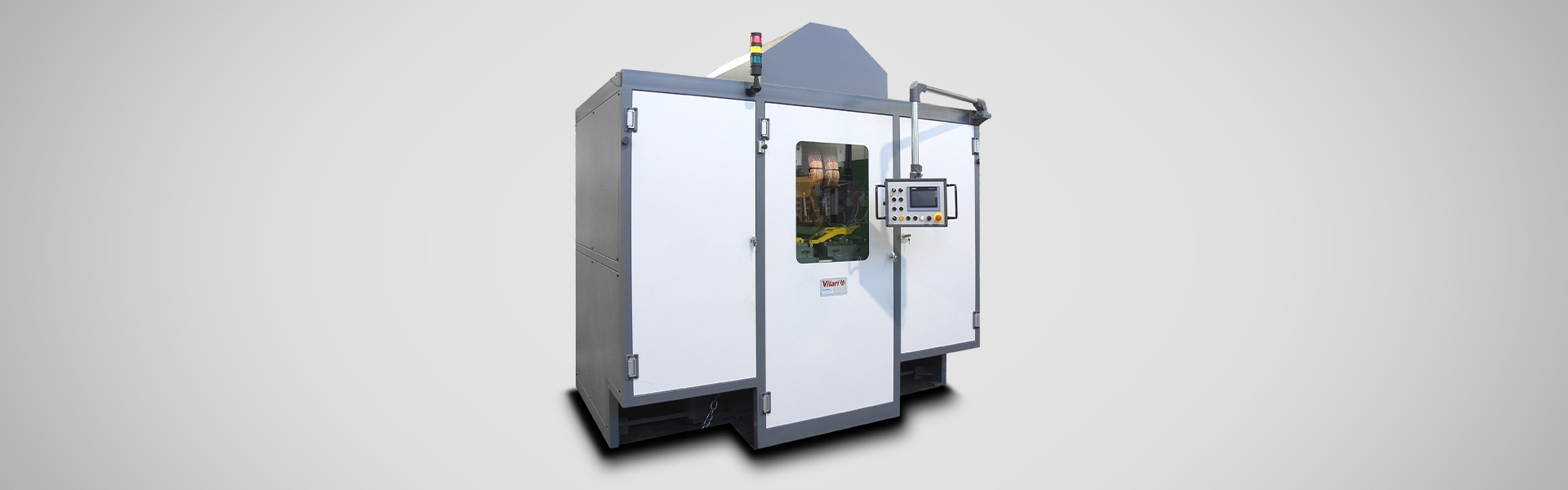

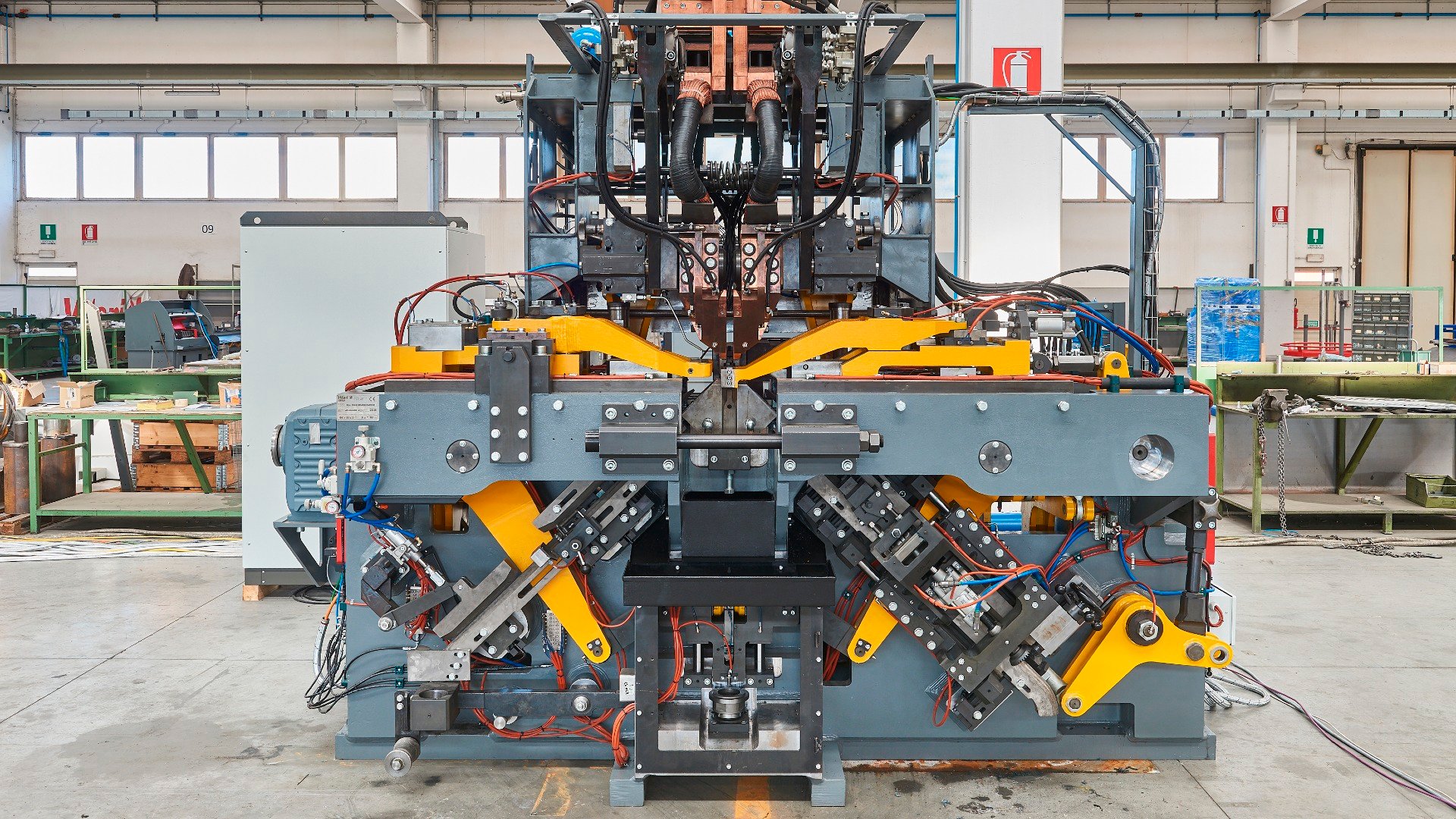

The Vitari SH series of chain welding machines allows customers to weld chains in one single stage by using a device that positions the chain link in the precise welding location.

These machines can weld both high alloy and high resistance steel chains, and caters to low and mild carbon, manganese etc.

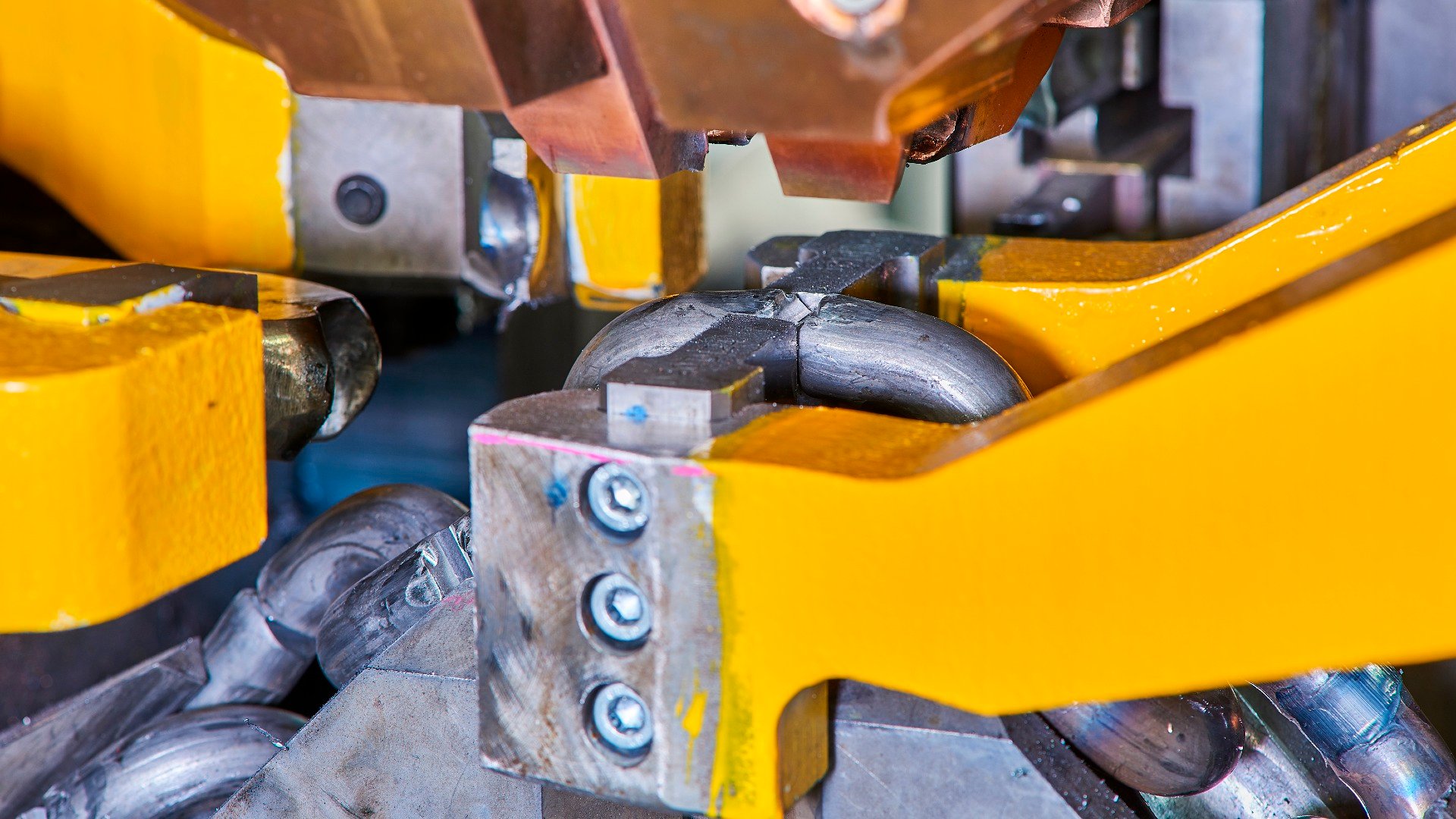

The quality of the weld is of the highest standards available today due to the welding control system operating with medium frequency technology (1000 Hz). This allows a constant and high quality weld, when compared to standard frequency welding (50-60Hz). As welding process occurs in only one machine, therefore providing the same parameters for all welded chain links, the SH machine ensures an outstanding weld quality. It is equipped with a computer that enables monitoring all machine parameters, even while the machine is operating. Moreover, it allows loading and storing the parameters for every single type of chain. The electrode unit is now fully adjustable as it can be tilted upwards, enabling full operator access when needed to intervene on the welding tools.

Chain Welding SH Series
MODEL   SH 0 SH 1 SH 2 SH 3 SH 4
WIRE Ø INPUT [mm] 3 ÷ 6 5 ÷ 10 8 ÷ 13 10 ÷ 16 14 ÷ 22
LINK PITCH [mm] 9 ÷ 40 15 ÷ 65 24 ÷ 85 30 ÷ 100 40 ÷ 120
MAX. SPEED [links/min] 75 70 55 40 30
