BARBED WIRE MACHINE BVR

BARBED WIRE MACHINE BVR - REVERSE TWIST

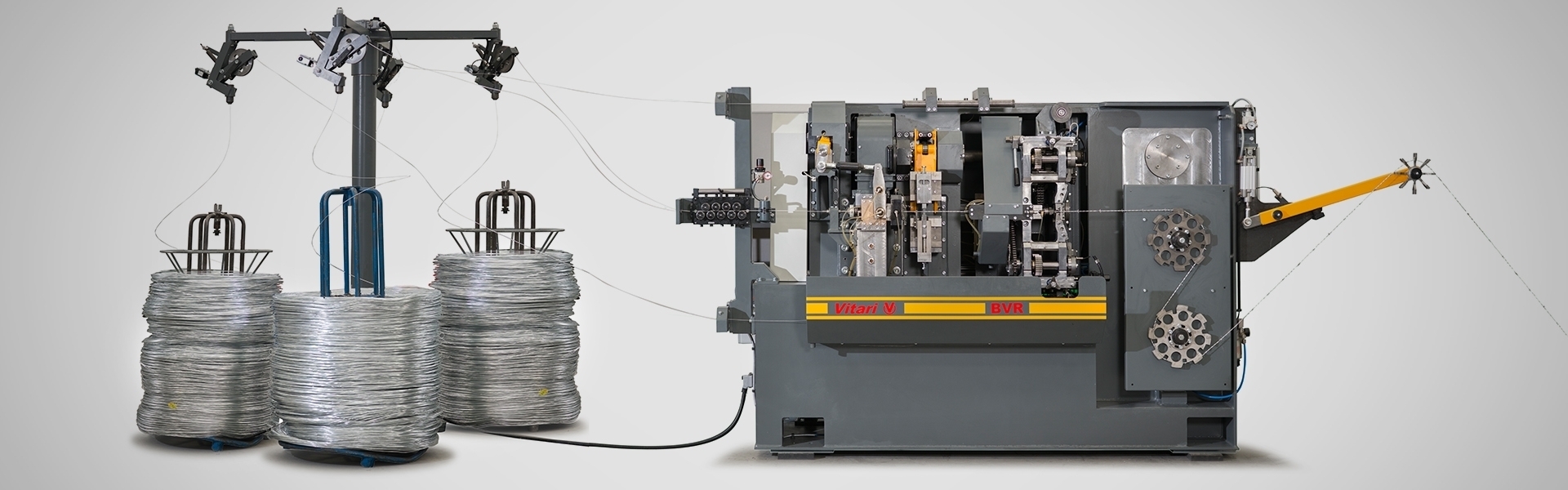

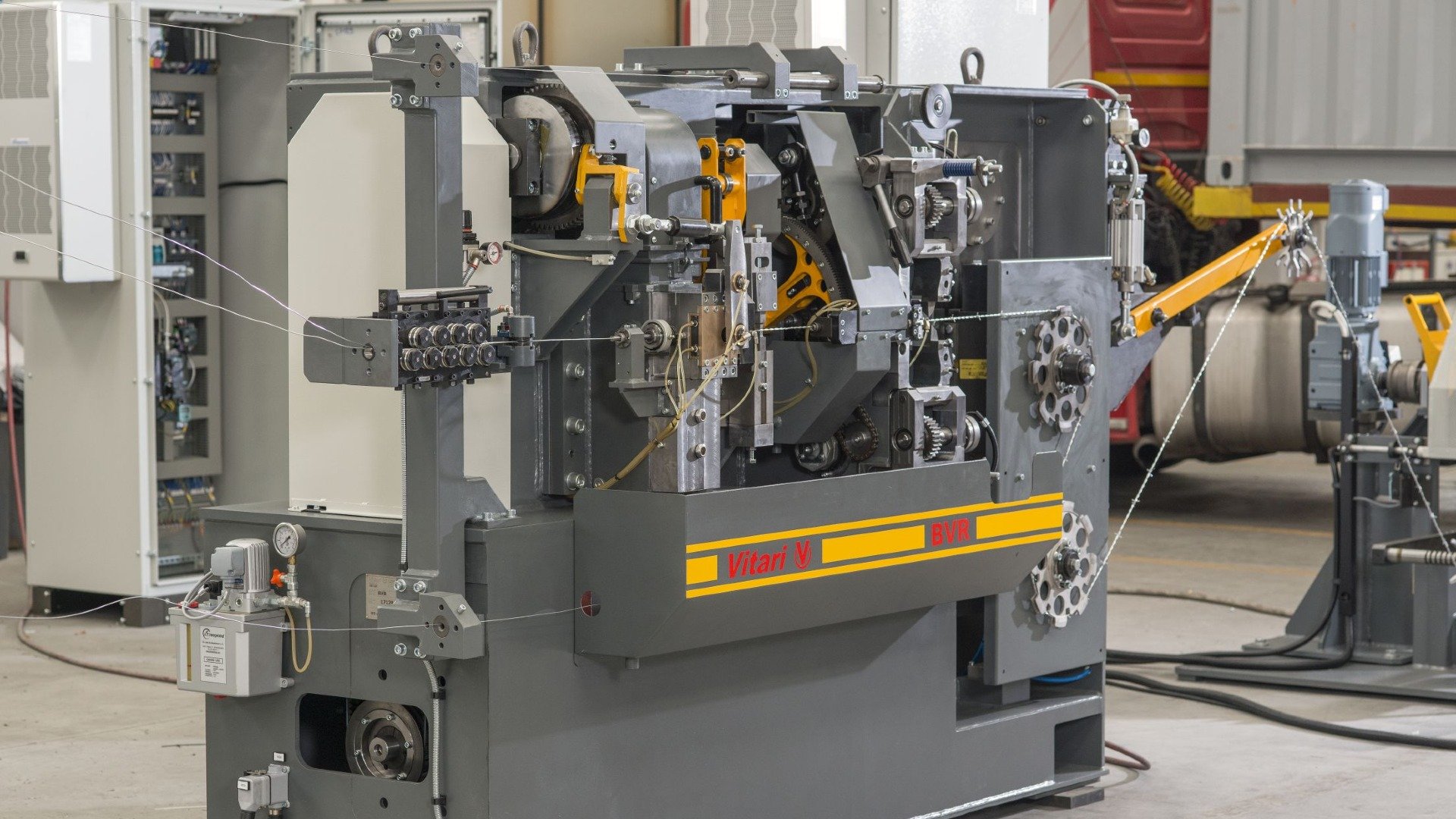

The Vitari BVR machine type is the most recent and innovative barbed wire machine for the manufacturing of Iowa reverse-twist barbed wire.

It is a high-speed barbed wire machine that processes two line wires alternately, in clockwise and anti-clockwise mode. This allows the barbed wire to be easily installed as the alternating torsions keep the barbed wire in a straight line and not looped as with the conventional BVM model that processes clock-wise torsions throughout.

The reverse-twist barbed wire is usually produced with high-tensile wire even though the machine can adapt to processing galvanized barbed wire too.

Barbed Wire BV Series
MODEL   BVR
STRAND WIRE Ø INPUT [mm] 1.6 ÷ 2.0
BARB WIRE Ø INPUT [mm] 1.4 ÷ 1.8
PITCH [in] 3 ÷ 6 (*)
TORSIONS [-] 2 ÷ 5
BARBS PER MINUTE [barbs/min] 230 ÷ 300
MAX. SPEED (*) [m/min] 35
(*) Pitch in millimeters: 76.2 ÷ 152.4
